BZT-02
BZT-02, a widely-used laser brazing tool, integrates mechanical seam tracking unit and MFU auto-zooming module, via which the optimal position for both laser spot and welding wire could be acquired, accordingly forming perfect welding seam without defects.

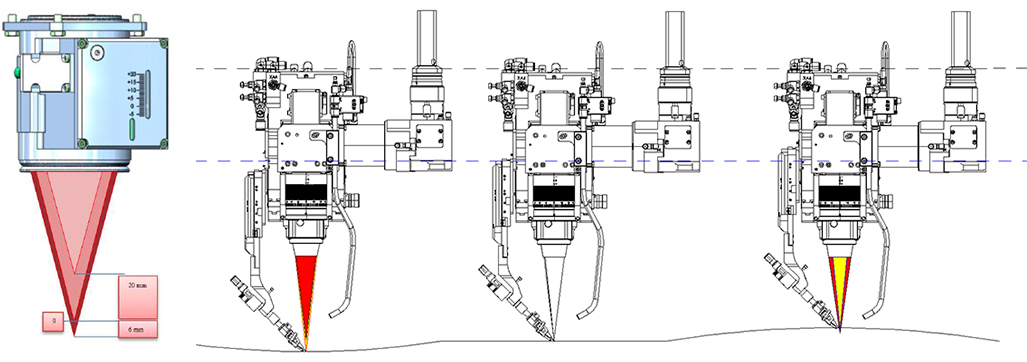

Ø MFU auto-zooming module: based on the signal acquired from position sensor matching with flexible contacting unit, the deviation (-6~20mm) of welding seam on Z-axis could be calculated and transferred to MFU servo motor, in order to ensure the laser spot staying on the same plane with welding wire
Ø Self-adapting mechanical seam tracking: welding wire was used as guide tip, servo motor was used as driving unit on Y-axis. Adjusting range is ±10mm
Type | BZT-02 |
Wavelength | 900-1100 nm |
Maximum power | 8KW（BPP=8) |
Focusing distance | 200 mm |
Optical ratio | M =1.0 |
Seam tracking range in Y-axis | ± 10 mm |
Seam tracking accuracy | 0.1 mm |
Optical fiber diameter | 100 ~ 600 um |
| Optical fiber coupler type | QBH，LLK-D |
